Home / Solutions / Flood Light Series
Formula Array CSP Induction Lamp Extra High Power Lumen

Flood Light Series

Wide-throw illumination for billboards, roads, municipal squares, bridge tunnels, sports stadiums, and construction sites — three light sources engineered for long-range, high-uniformity coverage.

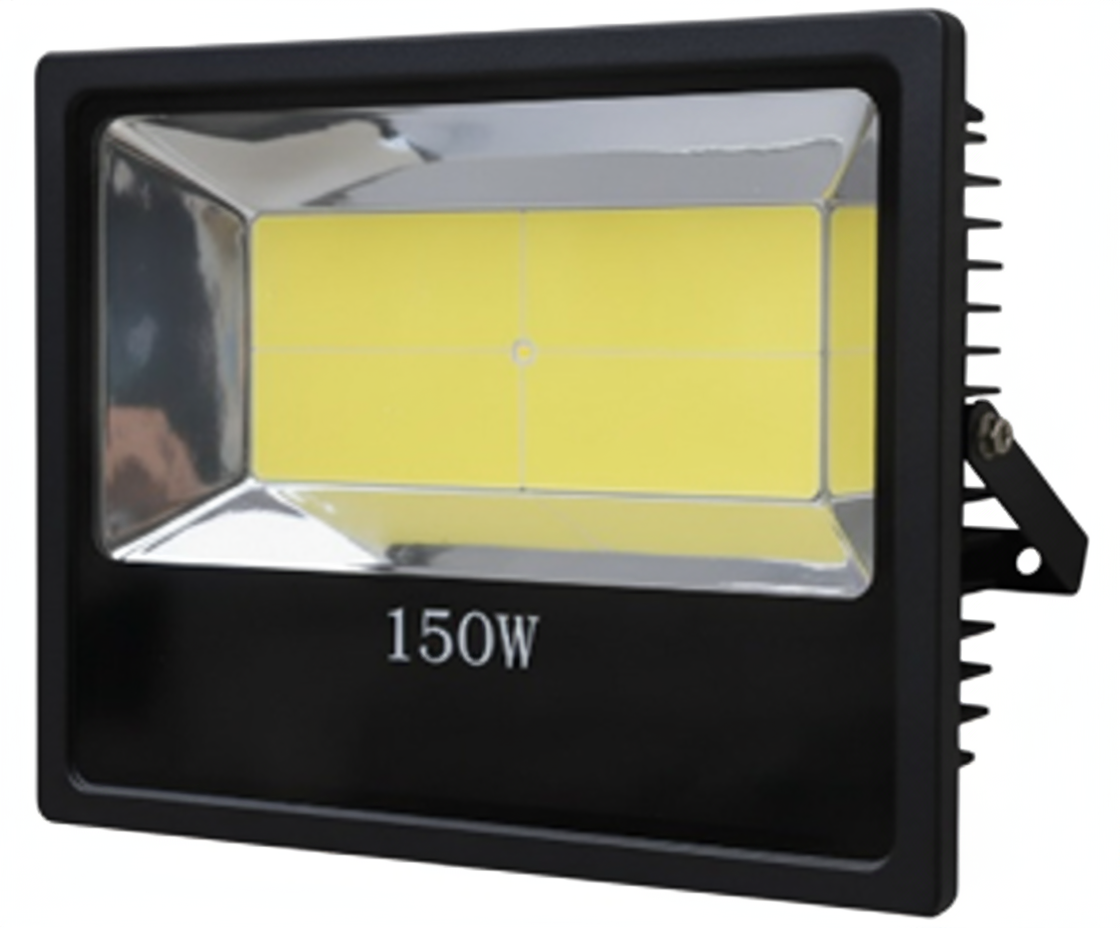

Formula Array CSP flood light fixture FAL-FLD SERIES
160lm/W
EFFICACY
80–200W
POWER RANGE
50,000+ hrs
LIFESPAN
IP65/66
INGRESS PROTECTION

Specification

Unit CodesFAL-FLD-080W / 100W / 120W / 150W / 200W
Power80–200W
Efficacy160 lm/W
CCT2700K – 6500K
Voltage100–277V
CRIRa80
Power Factor>0.95
Beam Angle30° / 60° / 90° / 120°
MaterialDie-Cast + PC Lens + Glass
IP GradeIP65 / IP66
Operating Temp.-35°C to 100°C
Humidity10%–90%
Lamp Surface Temp.< 45°C
Lumen Depreciation< 5% in first year
Warranty5 Years

Features

  • High efficacy: 120–170 lumens per watt
  • Long lifespan — over 50,000 hours of operation
  • Superior thermal management
  • DLC 4.0 premium meets L70 > 50,000 hrs requirement
  • Wide voltage — operates on 100–305 VAC
  • High power factor > 0.95
  • Sensor integrations: motion, light, dimming sensor, programmable ON/OFF timer
  • Mounting brackets with adjustable knuckle and marked plate for aiming beams

Applications

Billboards Roads Municipal Squares Bridge Tunnels Sports Stadiums Construction Sites

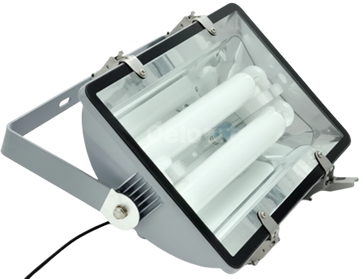

Induction Lamp flood light fixture IND-FLD SERIES
80lm/W
EFFICACY
80–200W
POWER RANGE
10+ yrs
LIFE @ 12HR/DAY
IP65/66
INGRESS PROTECTION

Specification

Unit CodesIND-FLD-080W / 120W / 150W / 200W
Power80–200W
Efficacy80 lm/W
CCT2700K – 6500K
Voltage170–250V
CRI>Ra80
Power Factor>0.99
Beam Angle30° / 60° / 90° / 120°
MaterialDie-Cast + PC Lens + Glass
IP GradeIP65 / IP66
Operating Temp.-35°C to 100°C
Humidity10%–90%
Lamp Surface Temp.< 55°C
Lumen Depreciation< 5% in first year
Warranty5 Years

Features

  • Long life — over 10 years @ 12 hrs/day burning
  • High-pressure die-cast aluminium housing separates the electrical box from the lamp, improving heat dissipation and ensuring independent sealing
  • Curved, professionally designed induction-lamp surface with a mirror reflector optimizes light output
  • Unique buckle design allows easy opening and sealing while maintaining a high protection level
  • Long-distance controller for easy maintenance
  • Minimal light decay compared to HID lamps
  • Electrode-free lamp design — extremely long life
  • Sensor integrations: motion sensor, light sensor, programmable ON/OFF timer

Applications

Billboards Roads Municipal Squares Bridge Tunnels Sports Stadiums Construction Sites

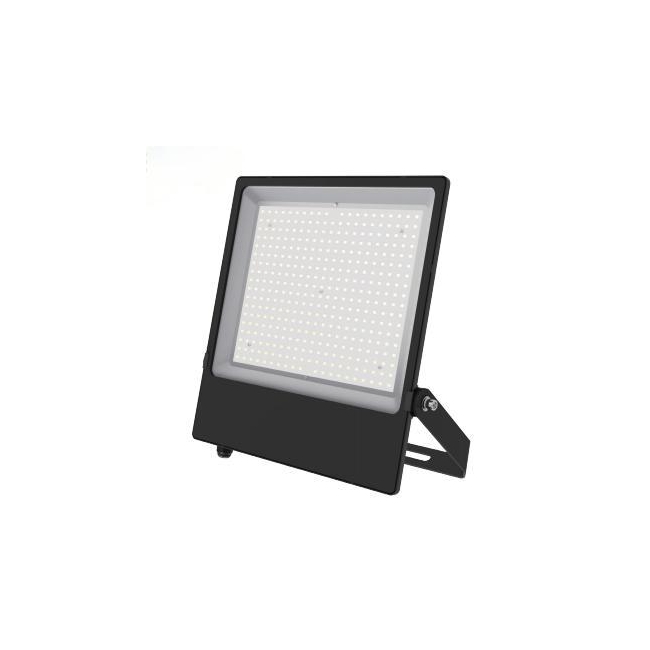

Extra High Power Lumen (EHPL) flood light fixture EHPL-FLD SERIES
190–210lm/W
EFFICACY
50–300W
POWER RANGE
30/60/90/120°
BEAM ANGLE
IP65/66
INGRESS PROTECTION

Specification

Unit CodesEHPL-FLD-050W / 100W / 150W / 200W / 300W
Power50–300W
Efficacy190–210 lm/W
CCT3000K – 6000K
Voltage100–240V
CRI>Ra70
Power Factor>0.95
Beam Angle30° / 60° / 90° / 120°
MaterialDie-Cast Aluminium Shell
IP GradeIP65 / IP66
Operating Temp.-40°C to 50°C
Humidity10%–90%
LED Type3030
Power SupplyMean Well / Sosen
Lumen Depreciation> 5% in first year *
Warranty5 Years

* As listed in source datasheet — worth confirming with engineering, since this runs opposite to the <5% figures on the other two technologies (same discrepancy noted on the Street Light and High Bay EHPL sheets).

Features

  • Large heat dissipation area — good heat dissipation effect, long service life of lamps
  • High-temperature resistant tempered glass, surface paint process, excellent corrosion resistance
  • High luminous efficacy up to 190–210 lm/W
  • Professional anti-glare full cut-off light distribution: luminous angle 30° / 60° / 90° / 120°
  • Sensor integrations: motion sensor, light sensor, dimming sensor, programmable ON/OFF timer

Applications

Billboards Roads Municipal Squares Bridge Tunnels Sports Stadiums Construction Sites
