Extra High Power Lumen Back-lit Panel 200 lm/W

Panel Light Series

Built on EHPL technology — a back-lit LED panel with switchable power, tunable color temperature, and a Philips driver, engineered for troffer replacement in offices, healthcare, retail, and education.

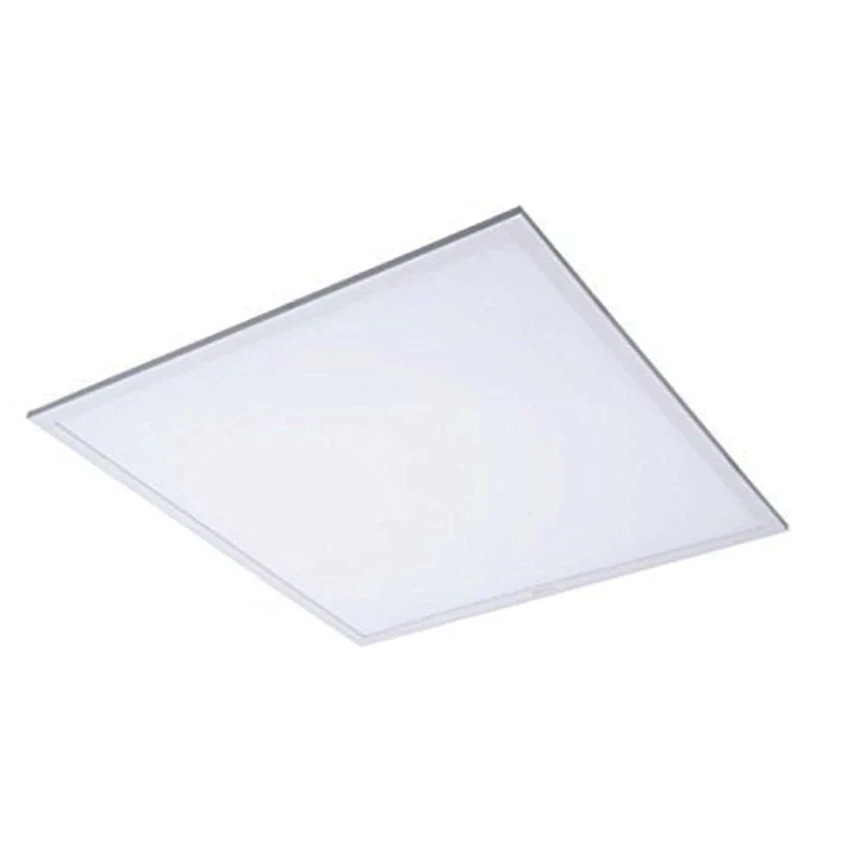

Back-lit LED Panel Light — EHPL technology SL-PBE SERIES
200lm/W
EFFICACY
18/25W
SWITCHABLE POWER
Ra>80
COLOR RENDERING
IP20
INGRESS PROTECTION

Specification

Unit CodesSL-PBE3012GH-X-S · SL-PBE6060GH-X-S · SL-PBE6262GH-X-S
Efficacy200 lm/W ±5%
Power (Switchable)18W / 25W
Lumen Output3600 lm (18W) / 5000 lm (25W) ±5%
Input VoltageAC 220–240V
Color Temperature3000K–4000K (CCT freely combinable)
DriverPhilips
Power Factor>0.9
CRIRa > 80
LED TypeSMD 2835
Operating Temp.-10°C to 45°C
Protection LevelIP20
CertificationTUV · CE · ERP · LM79 · RoHS
Warranty5 Years

Dimensions

SL-PBE3012GH-X-S1195 × 295 × 34 mm
SL-PBE6060GH-X-S595 × 595 × 34 mm
SL-PBE6262GH-X-S620 × 620 × 34 mm

Features

  • Isolated driver with power factor > 0.9 for enhanced safety and performance
  • THD ≤ 20% for stable and efficient operation
  • Flicker-free operation to reduce eye strain and ensure visual comfort
  • UGR ≤ 22 and UGR ≤ 19 options for reduced glare
  • No flicker, no dark spots — designed for prolonged visual comfort
  • 5-year warranty, supporting 24/7 continuous operation
  • Over 50% energy saving versus traditional troffer lighting
  • Adjustable power — switch between 18W and 25W on the driver
  • Tunable CCT — switchable base lets 3000K and 4000K combine freely (e.g. 3000K+4000K, 3000K+6000K, 4000K+6000K)

Applications

Factories Supermarkets Office Buildings Hospitals Schools
