Formula Array CSP Induction Lamp Extra High Power Lumen

Street Light Series

One fixture family, three engineered light sources — built to match the efficacy, lifespan, and budget profile of every road, park, and public-realm application.

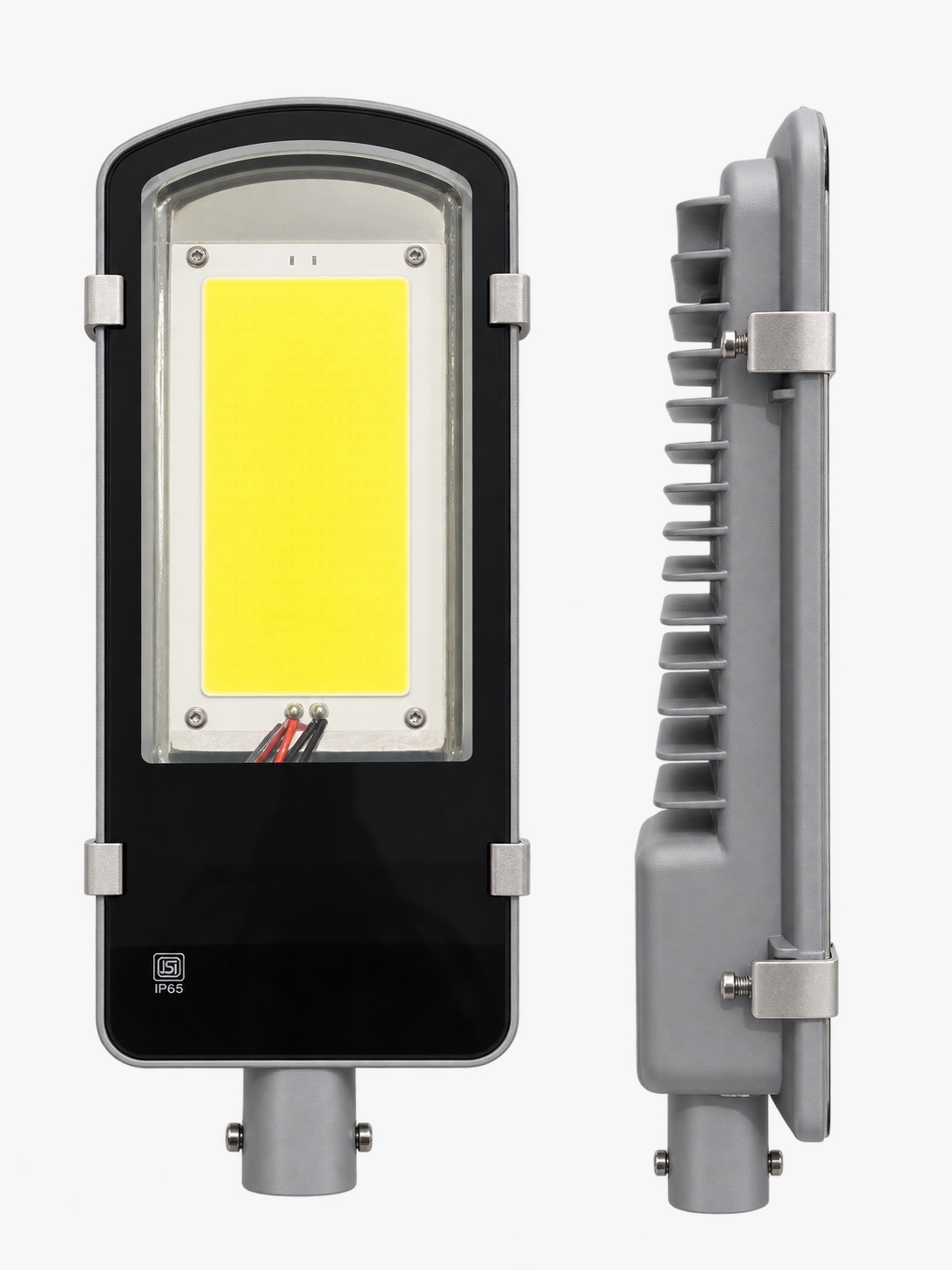

Formula Array CSP street light fixture FAL-STRT SERIES
160lm/W
EFFICACY
40–150W
POWER RANGE
50,000+ hrs
LIFESPAN
IP65/66
INGRESS PROTECTION

Specification

Unit CodesFAL-STRT-040W / 080W / 100W / 120W / 150W
Power40–150W
Efficacy160 lm/W
CCT2700K – 6500K
Voltage100–277V
CRIRa80
Power Factor>0.95
Beam AngleType II / Type III
MaterialDie-Cast + PC Lens + Glass
IP GradeIP65 / IP66
Operating Temp.-35°C to 100°C
Humidity10%–90%
Lamp Surface Temp.< 45°C
Lumen Depreciation< 5% in first year
Warranty5 Years

Features

  • High efficacy: 120–160 lumens per watt
  • Long lifespan — over 50,000 hours of operation
  • Superior thermal management
  • DLC 4.0 premium meets L70 > 50,000 hrs requirement
  • Wide voltage — operates on 100–305 VAC
  • High power factor > 0.95
  • Sensor integrations: motion, light, dimming sensor, programmable ON/OFF timer
  • 3-bolt slip-fitters with ±5° site adjustment, suited to 50/60mm mounting pipe

Applications

Parks Squares Scenic Areas Pedestrian Streets Urban Roads Villa Communities New Countrysides Billboards Ballparks Porches Courtyards Open Yards

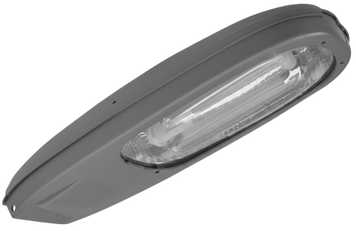

Induction Lamp street light fixture IND-STRT SERIES
80lm/W
EFFICACY
40–150W
POWER RANGE
10+ yrs
LIFE @ 12HR/DAY
IP65/66
INGRESS PROTECTION

Specification

Unit CodesIND-STRT-040W / 080W / 120W / 150W
Power40–150W
Efficacy80 lm/W
CCT2700K – 6500K
Voltage170–250V
CRI>Ra80
Power Factor>0.99
Beam AngleType II / Type III
MaterialDie-Cast + PC Lens + Glass
IP GradeIP65 / IP66
Operating Temp.-35°C to 100°C
Humidity10%–90%
Lamp Surface Temp.< 55°C
Lumen Depreciation< 5% in first year
Warranty5 Years

Features

  • Long life — over 10 years @ 12 hrs/day burning
  • Low glare & high uniformity
  • High color rendering
  • No flicker, no glare, instant start
  • High light efficiency and low light decay
  • Long-distance controller for easy maintenance
  • Minimal light decay compared to HID lamps
  • Electrode-free lamp design — extremely long life
  • Sensor integrations: motion sensor, light sensor, programmable ON/OFF timer

Applications

Parks Squares Scenic Areas Pedestrian Streets Urban Roads Villa Communities New Countrysides Billboards Ballparks Porches Courtyards Open Yards High Mast Lighting

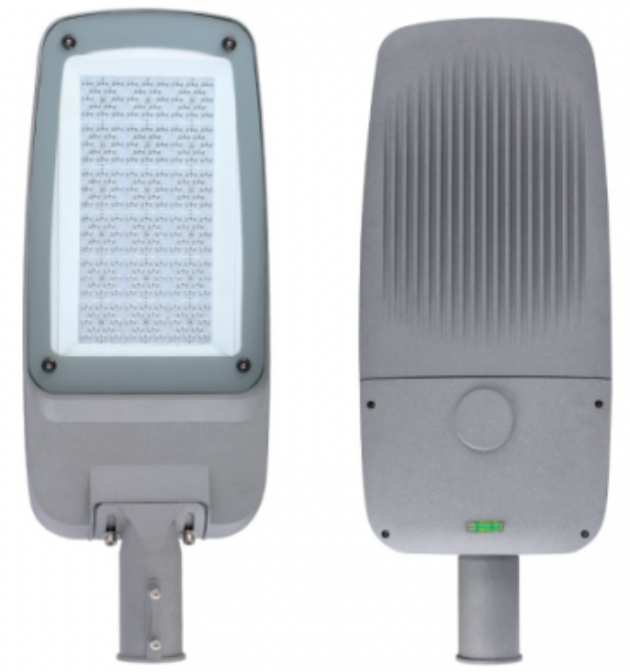

Extra High Power Lumen (EHPL) street light fixture EHPL-STRT SERIES
200+ lm/W
EFFICACY
30–100W
POWER RANGE
~35%
ENERGY SAVED vs. 120 lm/W
IP65/66
INGRESS PROTECTION

Specification

Unit CodesEHPL-STRT-030W / 060W / 100W
Power30–100W
Efficacy> 200 lm/W
CCT3000K – 5700K
Voltage100–240V
CRI>Ra70
Power Factor>0.95
Beam AngleType II / Type III
MaterialDie-Cast + PC Lens + Glass
IP GradeIP65 / IP66
Operating Temp.-40°C to 50°C
Humidity10%–90%
LED Type3030
Lumen Depreciation> 5% in first year *
Warranty5 Years

* As listed in source datasheet — worth confirming with engineering, since this runs opposite to the <5% figures on the other two technologies.

Features

  • Smart dimming — automatically adjusts brightness based on ambient light, turns on at dusk or dawn
  • High efficiency — saves ~35% energy vs. fixtures of the same wattage at max 120 lm/W efficacy
  • Market-leading standard — high-efficiency design meets premium market demands
  • Sensor integrations: motion sensor, light sensor, dimming sensor, programmable ON/OFF timer

Applications

Parks Squares Scenic Areas Pedestrian Streets Urban Roads Villa Communities New Countrysides Billboards Ballparks Porches Courtyards
