IoT-Enabled
LoRaWAN / GSM / Narrow Band
Remote Dimming & Monitoring
Centralized Command & Monitoring System
A smart, IoT-enabled streetlighting automation system enabling remote monitoring, energy optimization, dimming control, and fault diagnostics through LoRaWAN / GSM / Narrow Band-connected luminaire controllers and a cloud supervision platform.
Features
REMOTE & AUTONOMOUS CONTROL
- Remote ON/OFF & 1–100% dimming control
- Compatible with DALI-2 / D4i / 0–10V / PWM drivers
- Autonomous operation — astronomical clock, predefined schedules, light-level sensor-based switching
SMART MONITORING & FEEDBACK
- Voltage, current, active/reactive/apparent power
- Power factor & energy consumption
- Driver temperature & runtime hours
- Lamp on/off cycle counter
COMMUNICATION & NETWORKING
- LoRaWAN, GSM, and Narrow Band connectivity options
MAINTENANCE & SAFETY
- OTA firmware updates
- Fault detection — lamp, driver, over-voltage/current
- Tilt/roll detection (optional)
Specification
Control InterfaceDALI-2 / D4i / 0–10V /
PWM (model dependent)
Communication ProtocolLoRaWAN / GSM /
Narrow Band
Supported Lamp TypesLED, CFL, HID with
electronic/digital driver
Maximum Lamp PowerUp to 400W
(expandable to 750W with external contactor)
Dimming Range1% – 100% (linear or
logarithmic)
Input Power24V DC (Zhaga type) or
85–275V AC (pole-mount type)
Digital Inputs1× dry contact input (PIR
/ motion / photocell / door sensor)
Integrated SensorsLight sensor;
optional tilt/roll sensor
Energy & Power MonitoringVoltage,
current, active/reactive/apparent power, PF, energy consumption
Scheduling ModesAstronomical clock,
predefined calendar, sensor-based control
Firmware UpdatesOTA (Over-the-Air)
and/or infrared
SecurityAES-128 encryption
Operating Temp.-25°C to +70°C
Ingress / Impact ProtectionIP66 /
IK09
Design Lifetime10+ years
* Maximum lamp power expandable to 750W with an external contactor.

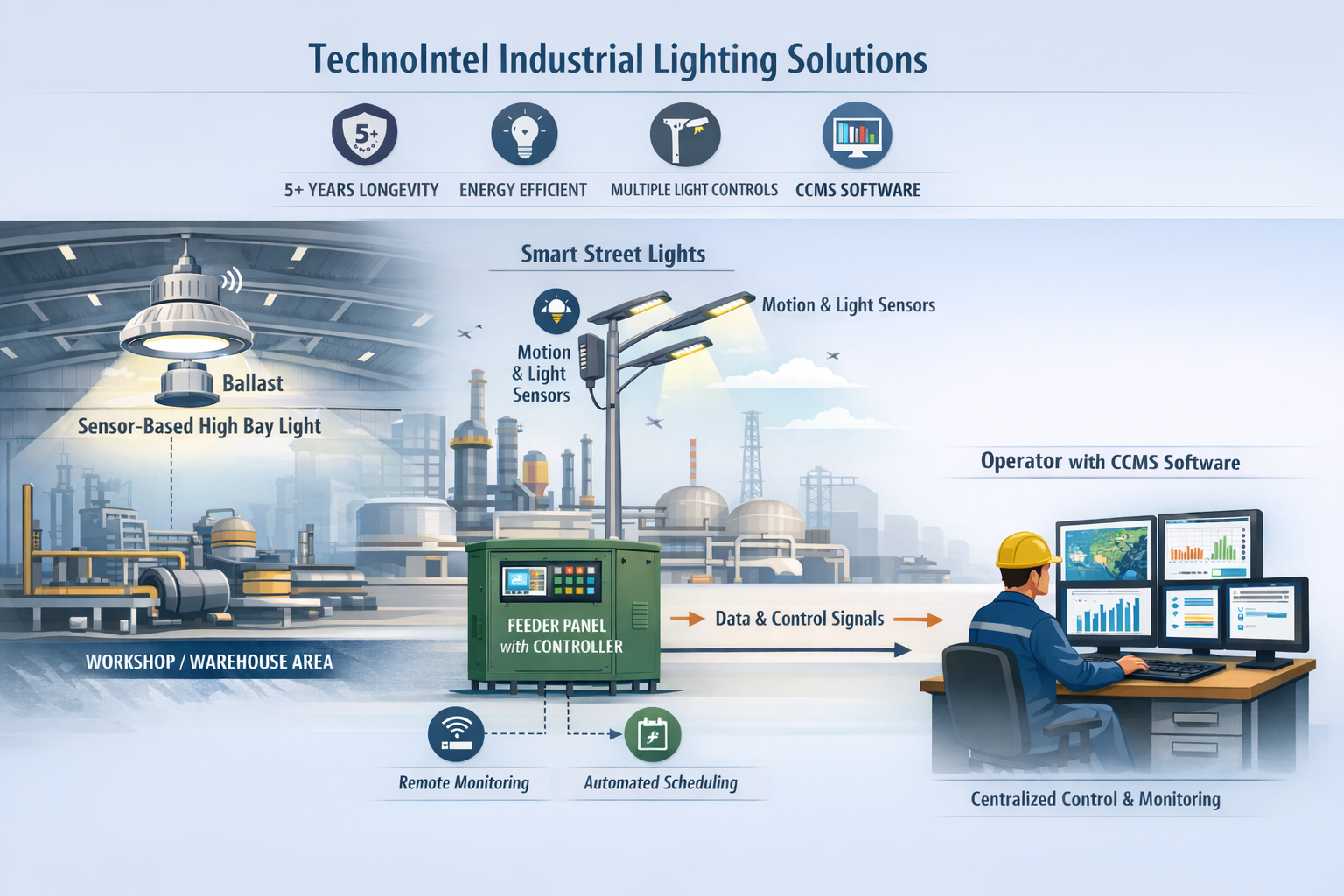

SYSTEM ARCHITECTURE
Remote Monitoring & Automated Scheduling
